Overview

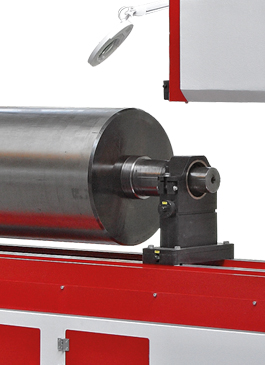

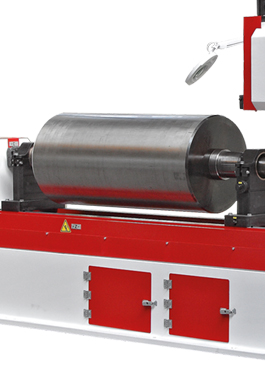

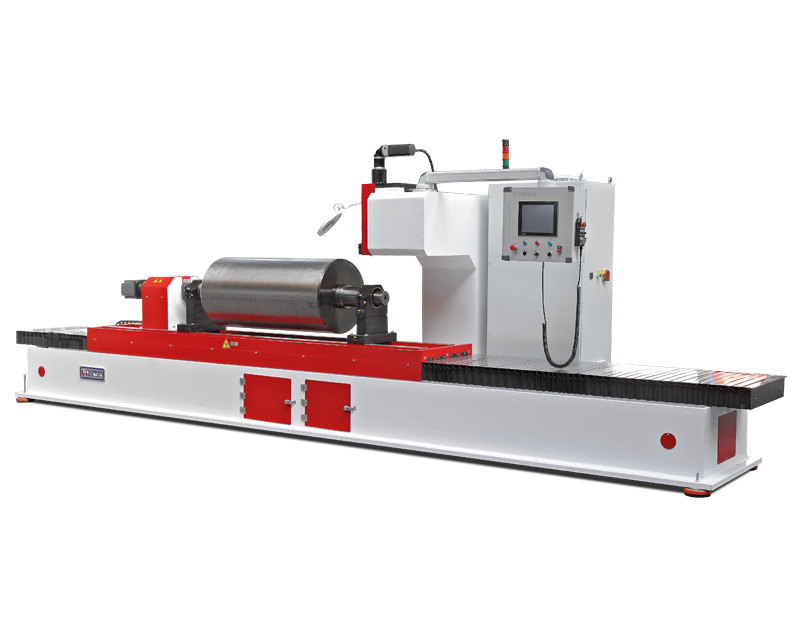

The YF/YFG 60210 models are designed for the largest industrial rolls, including flaking rolls with diameters up to 670 mm and body lengths up to 2,100 mm (84”). This model allows users to flute and grind very large rolls efficiently and accurately, ensuring high-quality results for industrial milling operations.
Working Principle
Fluting Operation: The machine automatically calculates the flute depth based on the flow sheet input via the touch panel, eliminating human error.
Grinding Cycle: Simple and user-friendly; operators enter the total cut and select one of the pre-defined grinding shapes (Cylindrical, Chamfer, or Camber).
| Application Sizes |
|
Roll Diameter: 200–670 mm (8”–26”) Roll Body Length: Up to 2,100 mm (84”) |
| Applications |
|
Large-scale mills and industrial roll operations Flour, feed, coffee, and oil milling Biscuit production and flaking rolls Breweries and other heavy-duty milling applications |
| Features & Advantages |
|

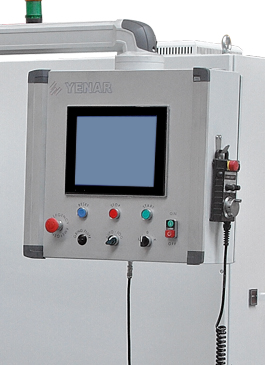

- 12” Touch Panel for intuitive operation - CNC Controlled for precision and consistency - User-Friendly Proprietary Software developed by YENAR - Local Languages Supported (more than 10 languages available) - Quick and easy replacement of tools and grinding stones - Options for single or multi-point tools - Ability to run the machine via laptop - Low operation and maintenance cost - Automatic lubrication system - Tool, table, stone, and index motors are servo motor controlled - Minimal consumption of spare parts - Easy installation for immediate use - Integrated Remote Assistance Control for troubleshooting - Helical Fluting Feature available for specialized applications |
|
| Cylindrical Grinding |
|
Used to remove old corrugations or prepare the roll for new fluting. Ensures a uniform cylindrical shape along the roll length. |
|
| Chamfer Grinding |
|
Designed for smooth rolls. The grinding head moves automatically according to the parameters you set, achieving precise chamfered edges. |
|
| Camber Grinding |
|
Also used for smooth rolls. The only parameter required is the diameter difference between the center and ends of the roll, allowing controlled camber shaping. |
